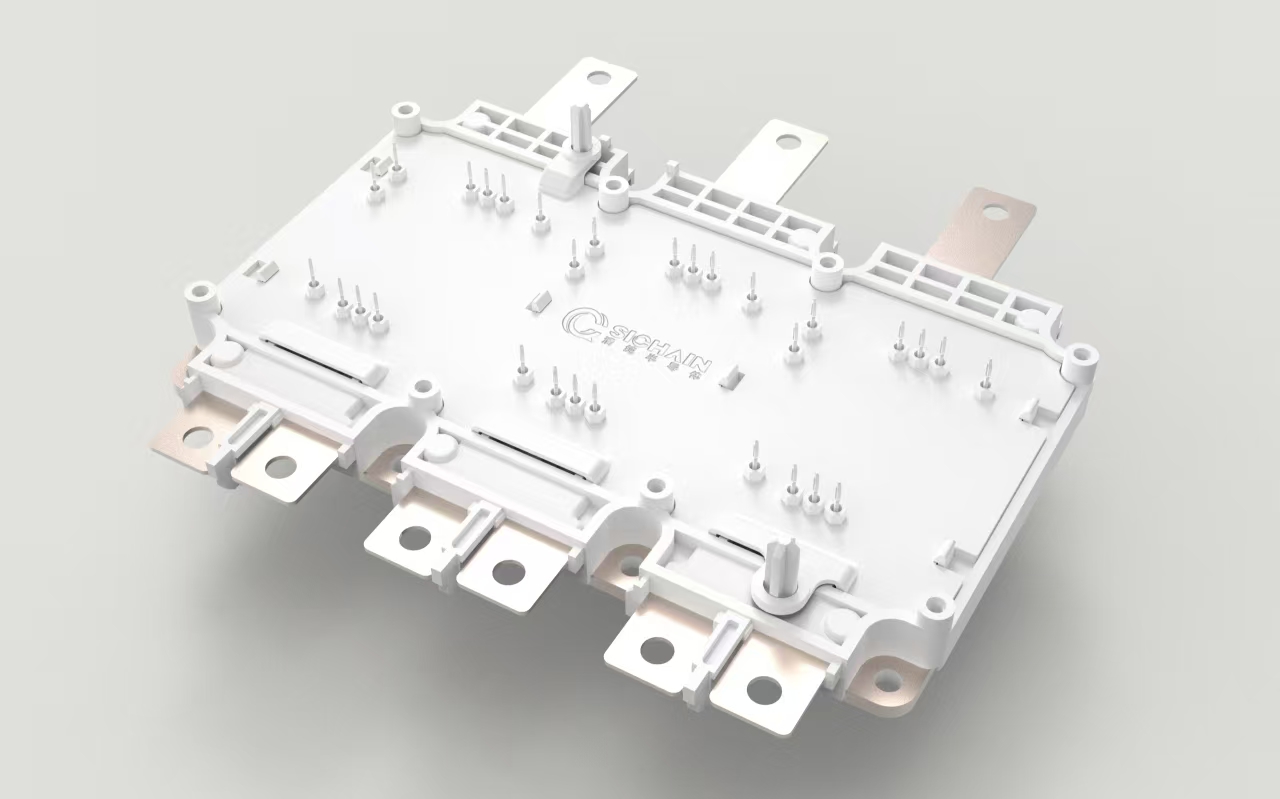

Module-MOSFET

Module-MOSFET

Featuring industry-leading on resistance characteristics and excellent reliability level

Application Form
Scheme Design
  • 1200V
  • 1500V
  • 750V
  • 1700V
  • 200A
  • 650A
  • 600A
  • 800A
  • 300A
  • 44A
  • 100A
  • 240A
  • 450A
  • 750A
  • 400A
  • 125A
  • 120A
  • 70A
  • 72A
  • 1000A
  • 900A
  • 180A
  • 6.5mΩ
  • 6mΩ
  • 1.7mΩ
  • 2.3mΩ
  • 4.3mΩ
  • 75mΩ
  • 10.5mΩ
  • 4.5mΩ
  • 2.2mΩ
  • 3.1mΩ
  • 2.5mΩ
  • 2.0mΩ
  • 3.5mΩ
  • 14mΩ
  • 40mΩ
  • 20mΩ
  • 1.75mΩ
  • 1.3mΩ
  • 1.6mΩ
  • 9.0mΩ
  • 8.5mΩ
  • TPAK
  • HPD
  • Mini HPD
  • DCM
  • MiniPak
  • PIM
  • Easy-1B
  • Easy-2B
  • EconoDUAL 3
  • 62mm
  • SOT-227
  • Automotive
  • Industrial
Product SKU DataSheet Blocking Voltage Configuration Current Rating at 100℃ Rds_on at 25℃ Tjmax Package Generation Qualification Status
S1P07R120SSF-A2 1200V Single switch 200A 6.5mΩ 175℃ TPAK G1 Automotive Sample
S2P06R150SSF-A 1500V Single switch 200A 6mΩ 175℃ TPAK G2 Automotive Sample
S1P02R075FBD-A 750V Full-Bridge 650A 1.7mΩ 175℃ HPD G1 Automotive Sample
S1P02R120FBD-A 1200V Full-Bridge 600A 2.3mΩ 175℃ HPD G1 Automotive Sample
S1P02R120FBJ-A 1200V Full-Bridge 600A 1.7mΩ 175℃ Mini HPD G1 Automotive Sample
S1P02R120HBM-A 1200V Half-Bridge 800A 1.7mΩ 175℃ DCM G1 Automotive Sample
S1P04R120FBP-A 1200V Full-Bridge 300A 4.3mΩ 175℃ MiniPak G1 Automotive Sample
S1P60R120FPZ-A 1200V Full-Bridge 44A 75mΩ 175℃ PIM G1 Automotive Sample
S1P10R120HBA 1200V Half-Bridge 100A 10.5mΩ 175℃ Easy-1B G1 Industrial Active
S1P05R120HBB 1200V Half-Bridge 240A 4.5mΩ 175℃ Easy-2B G1 Industrial Active
S1P02R120HBG-B 1200V Half-Bridge 600A 2.2mΩ 175℃ EconoDUAL 3 G1 Industrial Sample
S1P03R170HBG-B 1700V Half-Bridge 450A 3.1mΩ 175℃ EconoDUAL 3 G1 Industrial Sample
S1P03R170HBG-C 1700V Half-Bridge 600A 2.5mΩ 175℃ EconoDUAL 3 G1 Industrial Sample
S1P02R170HBG-C 1700V Half-Bridge 750A 2.0mΩ 175℃ EconoDUAL 3 G1 Industrial Sample
S1P04R120HBH-B 1200V Half-Bridge 400A 3.5mΩ 175℃ 62mm G1 Industrial Active
S1P14R120SSE-A 1200V Single switch 125A 14mΩ 175℃ SOT-227 G1 Industrial Active
S1P14R120HSE-A 1200V Single switch&Diode 120A 14mΩ 175℃ SOT-227 G1 Industrial Active
S1P40R120SSE-A 1200V Single switch 70A 40mΩ 175℃ SOT-227 G1 Industrial Active
S1P40R120HSE-A 1200V Single switch&Diode 70A 40mΩ 175℃ SOT-227 G1 Industrial Active
S1P20R170SSE-A 1700V Single switch 72A 20mΩ 175℃ SOT-227 G1 Industrial Active
S1P02R120HBG-C 1200V Half-Bridge 800A 1.75mΩ 175℃ EconoDUAL 3 G1 Industrial Sample
S1P01R120HBG-B 1200V Half-Bridge 1000A 1.3mΩ 175℃ EconoDUAL 3 G1 Industrial Sample
S1P02R170HBG-D 1700V Half-Bridge 900A 1.6mΩ 175℃ EconoDUAL 3 G1 Industrial Sample
S1P09R120CSE-A 1200V Common source 240A 9.0mΩ 175℃ SOT-227 G1 Industrial Active
S1P09R120SSF-A2 1200V Single switch 180A 8.5mΩ 175℃ TPAK G1 Automotive Sample
S1P02R120FBD-A 1200V Full-Bridge 600A 1.6mΩ 175℃ HPD G1 Automotive Sample
